Sectional Single Sheet Aluminum Doors

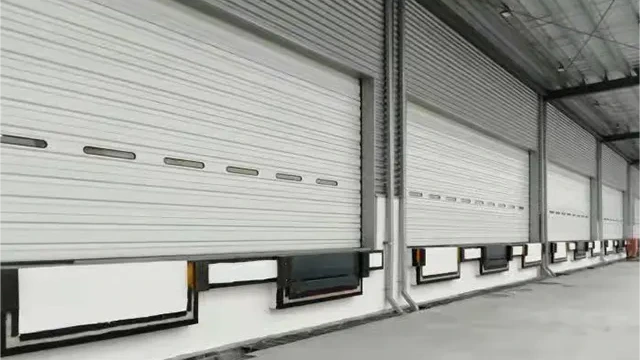

Sectional single sheet Aluminum doors are durable and efficient overhead doors that are constructed from a single sheet of steel. They are designed to provide secure and reliable access to commercial and industrial spaces.

Inquiry

Write a Review

WHY CHOOSE ALUMINUM DOORS

Better Sealing: with good airtightness

Strong panel: Reliable and sturdy

Automatic / Manual opening

Viewable window optional

Design Options

Product Features

Size

Application Scenarios

High Strength Door Panel

◆ Aluminum Thicknes: 0.6mm
◆ Height: 50cm per panel
◆ Panel thickness: 45mm
◆ Reinforcement: Aluminum, at vertical direction of the door panel
◆ Wind load resistence: 700-1000pa
◆ Color Options: White RAL 9010

Excellent Sealing

◆ Side seal is tightened against the door panel
◆ With indurstrial bottom seal,good air tightness
◆ Top seal will be close to the wall when the door is closed

Smooth and Durable Torsion Springs

◆ With torsion spring balance system
◆ Balance shaft solid diameter is 25.4mm and 31.75mm
◆ Manual chain can be used to open the door in case of power failure
◆ Precisely balanced, the door can stop in any position without slipping when opened manually
◆ With torsion spring balance system
◆ Balance shaft solid diameter is 25.4mm and 31.75mm
◆ Manual chain can be used to open the door in case of power failure
◆ Precisely balanced, the door can stop in any position without slipping when opened manually

Motor and Control System

◆ Industrial door motor with CE certification, With temperature sensitive relay motor protection,overload protection
◆ Wireless remote control option, control distance 100 meters
◆ Control box with man-machine interface can display the number of operation, fault codes and other information

Lifting Mode

◆ Different lifting methods are used according to the actual situation on site
◆ Standard lift
◆ Vertical lift
◆ High lift

High Quality Assurance

◆ Color Options:Off white RAL 9002 and Silver grey RAL9006
◆ Finger-proof panel
◆ Aluminum hinge
◆ Aluminum profil

Suitable for pharmaceutical, food, electronic, printing, supermarket and other high cleanliness requirements of the plant and area isolation

Product parameter

Duct Type	Aluminum single sheet door
Application	Industrial warehouse, Logistic warehouse
Vertical Lifting Method	V track, H track (According site condition)
Including	Aluminum hardware, Torsion spring,Cable break device,Spring break device
Working Speed	≥0.25m/s
Material	Aluminum Alloy Profiles
Aluminum Thickness	0.6mm
Wind Load Resistence	700-1000pa
Panel Color	White RAL9010
Panel Design	Corrugated Design
Panel Weight	9.2kg/m2-11.2kg/m2
Panel Thickness	45mm
Max. Length	12,000mm
Panel width	500mm
Surface treatment	Finished
Window Optional	(W) 650x (H) 126mm ABS frame, Plexiglass
Opener	Side industrial motor
Power	220V/380V
Warranty	3 years
Certificate	ISO9001:2015 CE TUV
Packing	Wrapped PE Film
Port	Shanghai port
Devliery time	15-25days

Video display

Product display

H49a4b9387bc047e39f6ef01904c5d4672 (2)

H853c925c8b9e4326ac6f211e7da782d3m

H8535d4d3659e4e9cb4d7b1585a23a628Z

H790950147c5b4c69a35479abe53d36a5T

faq

What is your MOQ?

No min order for aluminum door. We also suggest wooden cases package for protection during shipment.

What is the Max available size of the panels?

The max length of panels can be 6M. The max width of panels is 610mm, adjustable.

Can you do the full set products according to my project drawing?

Yes, our engineers will check your engineering drawings to ensure the accuracy of each different accessory and quantity.

Can I get a sample of aluminum door for quality check?

Sample is available.

How can I get a price of needed aluminum door?

Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.

What kind of payment terms would you accept?

We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.

We want to be your agent of our area. How to apply for this?

Please send your idea and your profile to any e-mails of us. Let's cooperate.

How to install your product, is it difficult?

Easy to install, just screw, no welding.If you need, installation video can be supplied. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.

Do you produce other products? Do you also produce accessories?

Yes, we also produce Garage door, Industrial door, High speed door, Rolling shutter door, Dock leveller, Dock seal, Motor&Gate openers. We produce parts by ourselves in order to control quality and cost.

Could you send me the price list?

Yes, the product is not standard, the size is customized according to your requirements, I can provide a regular size quotation.
